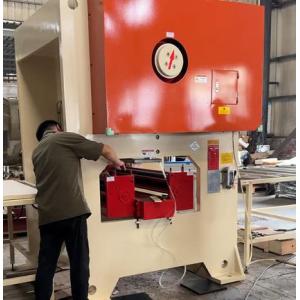

Hydraulic Press Pneumatic Fully Automatic Eyelet Punching Machine Eyelet And Grommet Machine
Ask Latest Price
Video Channel
Brand Name :LVJOE
Model Number :LV-CK01
Certification :ISO CE SGS
Place of Origin :China
MOQ :1 set
Price :US $20000-80000
Supply Ability :50 sets per year
Delivery Time :30 days
Packaging Details :PE film wrapped
Product Name :Hydraulic Press Pneumatic Fully Automatic Eyelet Punching Machine Eyelet And Grommet Machine
Keyword :Perforation Machine of Gypsum Ceiling Tile Gypsum Board Punching Machine Drilling Machine
Pressure :80T, 160T, 200T
Usage :Gypsum Board, MDF, HPL, Fiber cement board perforation
Patterns :Round, Square, Oval, Hexagonal, Irregular
Width of perforation :1220mm
Speed :50 times/minute
Overall Size :2300*1500*2300(H*L*W)
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description
Hydraulic Press Pneumatic Fully Automatic Eyelet Punching Machine Eyelet And Grommet Machine
Key Specifications
Attribute Value
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Patterns Round, Square, Oval, Hexagonal, Irregular
Width of perforation 1220mm
Speed 50 times/minute
Overall Size 2300*1500*2300(H*L*W)
Weight 7-11T
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (load the max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimension: 2300*1500*2300(H*L*W)
Structure and Configuration
  • Body of the main machine is welded with Q235 steel plate
  • H type gantry structure
  • Servo motor controlled feeding device
  • Front and rear roller conveyor (3000mm each)
  • Unilateral positioning for easy operation and high frequency
  • Central cabinet control with LCD touch screen digital input
  • 5.7-inch color LCD touch screen for feeding, punching, and operation control
Applications

This perforation machine is designed for creating precise holes in various materials including:

  • Gypsum ceiling board
  • MgO board
  • MDF
  • HDF
  • Fiber cement board
  • Metal sheet
Perforation Patterns

Custom perforating mold designs available from our extensive punching pattern database:

  • Round hole
  • Square hole
  • Oval hole
  • Round/oval cross
  • Hexagonal hole
  • Irregular hole
Finished Product Example

Hydraulic Press Pneumatic Fully Automatic Eyelet Punching Machine Eyelet And Grommet Machine
